HMP SON – dynamic probing now quite simple automatically!

Forget the annoying counting and evaluating of the stroke rates by hand - our new development HMP SON does it for you by a single click! The electronic measuring instrument HMP SON can be used with all pneumatic and mechanical dynamic probing according to EN ISO 22 476-2 for the automatic data logging on-site.

The premium device HMP SONpro

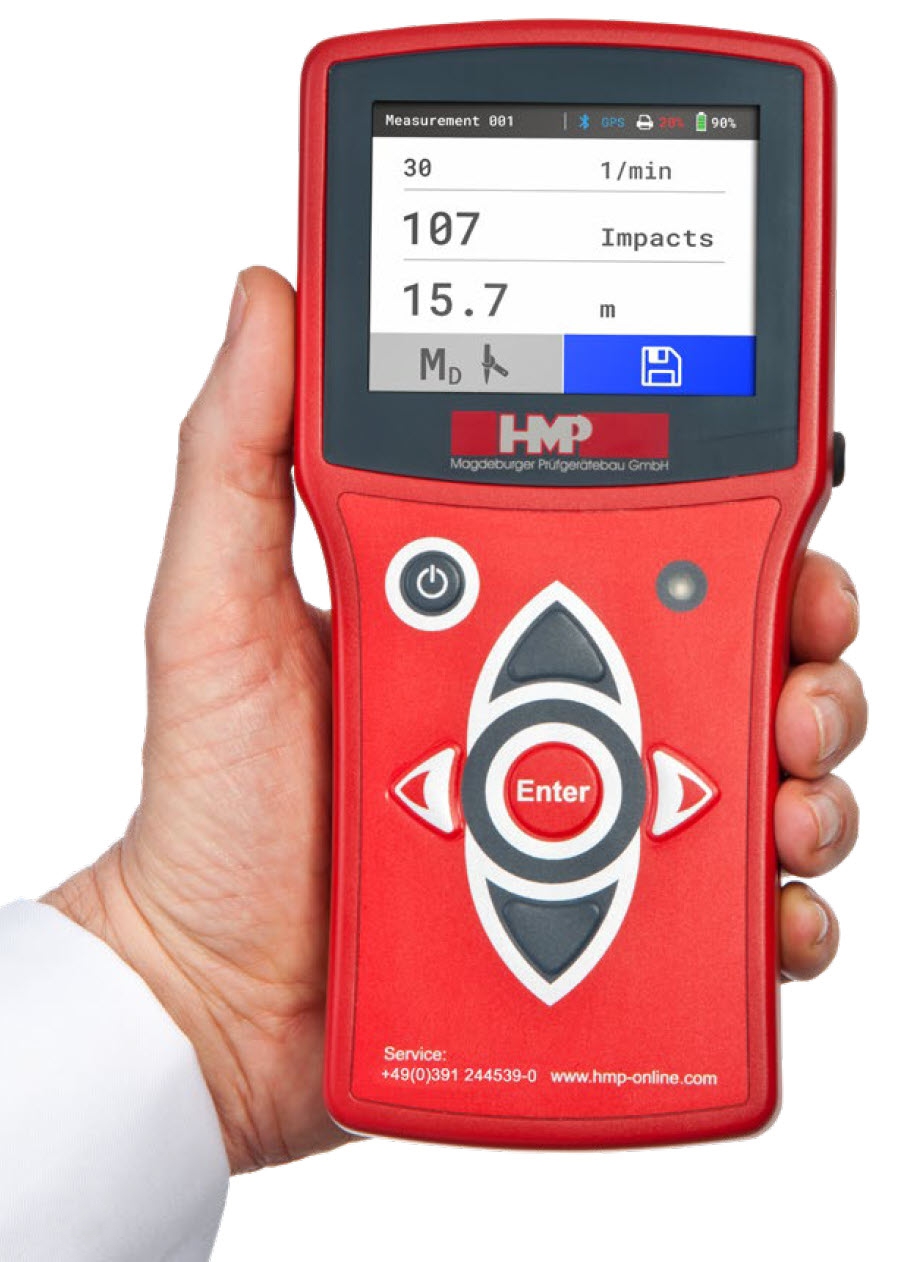

The HMP SONpro – record and analyse dynamic probing tests with ease!

Technical specifications

large colourful graphic display 3,5“
guarantees optimum readability at all weathers!
very comfortable intuitive menu navigation
integrated GPS
interface for thermal printer, USB
efficient, fast 32 bit-Prozessor
internal memory for up to 250 tests
high-performance rechargeable lithium-polymer-battery
> guarantees constant readiness for use
Backup of measured values in case of a sudden
interruption of the measurement

It doesn’t get any easier! Intuitive menu navigation

The menu navigation of the HMP LFGpro is very user-friendly. In order to perform the test, just follow the instructions in the display.

Reliably

Due to latest technology, the measuring instrument is small, handy, unbeatably easy to use but also extremely accurate. The measuring device is of course splash-water proof to work unter bad weather conditions. All parts of the tester are also surface sealed.

easy to retrofit to any common pneumatic or mechanical penetrometer
error-free measured value acquisition and -evaluation by internal plausibility check
enormous time savings due to automation - no more tally lists!
short protocol printable directly at the site
possibility of subsequent creation of measurement protocols on PC
simplest handling due to intuitive menu navigation
mobility by using efficient rechargeable batteries

HMP SON - Automatische Erfassung und Auswertung der Schlagzahlen bei mechanischen Rammsondierungen EN ISO 22 476-2

HMP SON - Automatische Erfassung und Auswertung der Schlagzahlen bei pneumatischen Rammsondierungen EN ISO 22 476-2

HMP SONpro-M
suitable for all common mechanical penetrometer

HMP SONpro-P
suitable for all common pneumatic penetrometer

The measuring instrument HMP SON-M records the stroke rate using radar. Simultaneously to that an ultrasonic sensor determines the penetration depth. The number of Strokes per 10 cm of penetration depth is automatically recorded and stored.

The measuring instrument HMP SON-P records the stroke rate using a pressure sensor. By pressing the foot switch every 10 cm of penetration depth, the number of strokes is recorded and stored for that penetration depth.
